Solutions

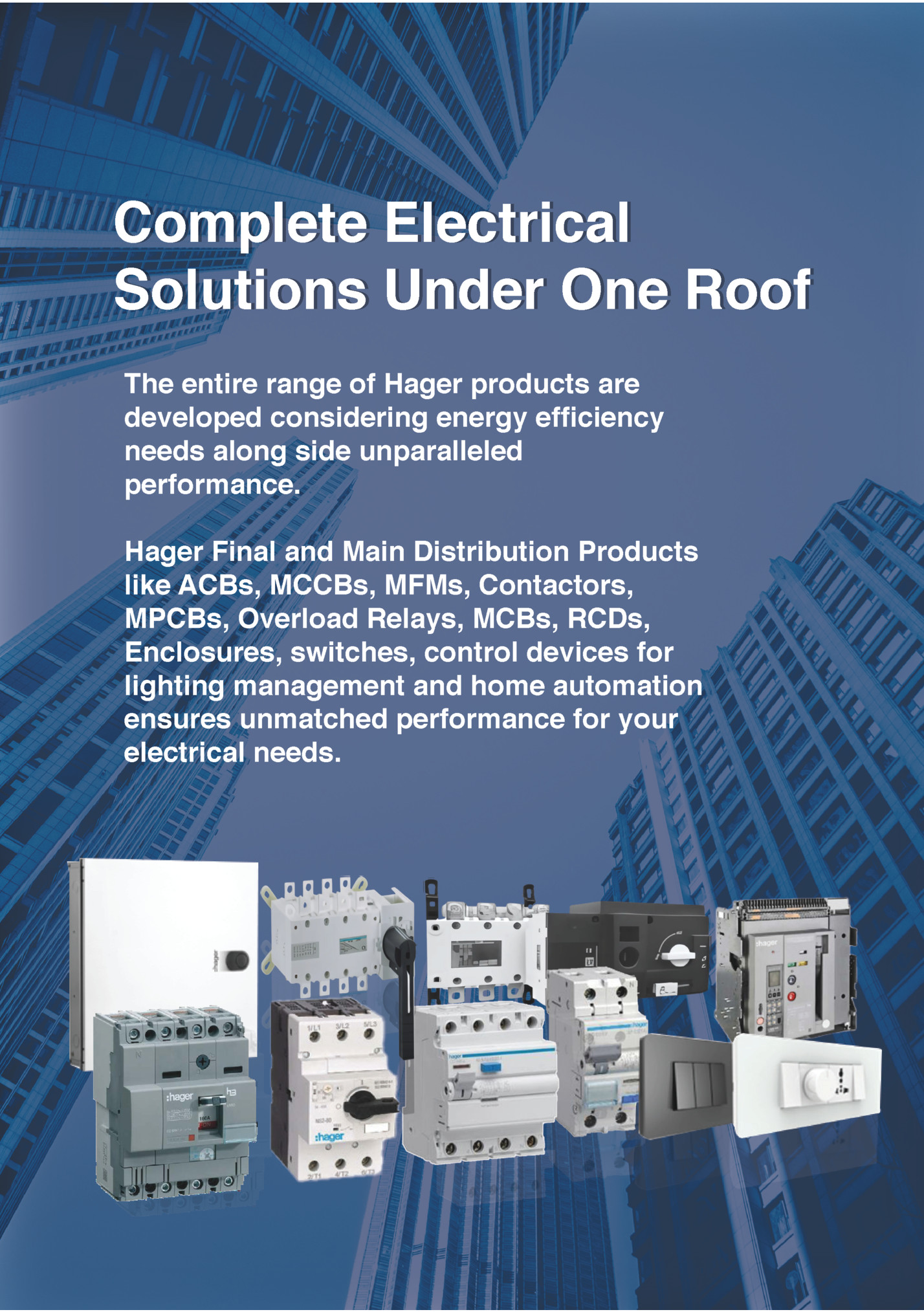

Solutions Under One Roof The entire range of Hager products are developed considering energy efficiency needs along side unparalleled performance. Hager Final and Main Distribution Products like ACBs, MCCBs, MFMs, Contactors, MPCBs, Overload Relays, MCBs, RCDs, Enclosures, switches, control devices for lighting management and home automation ensures unmatched performance for your electrical needs.

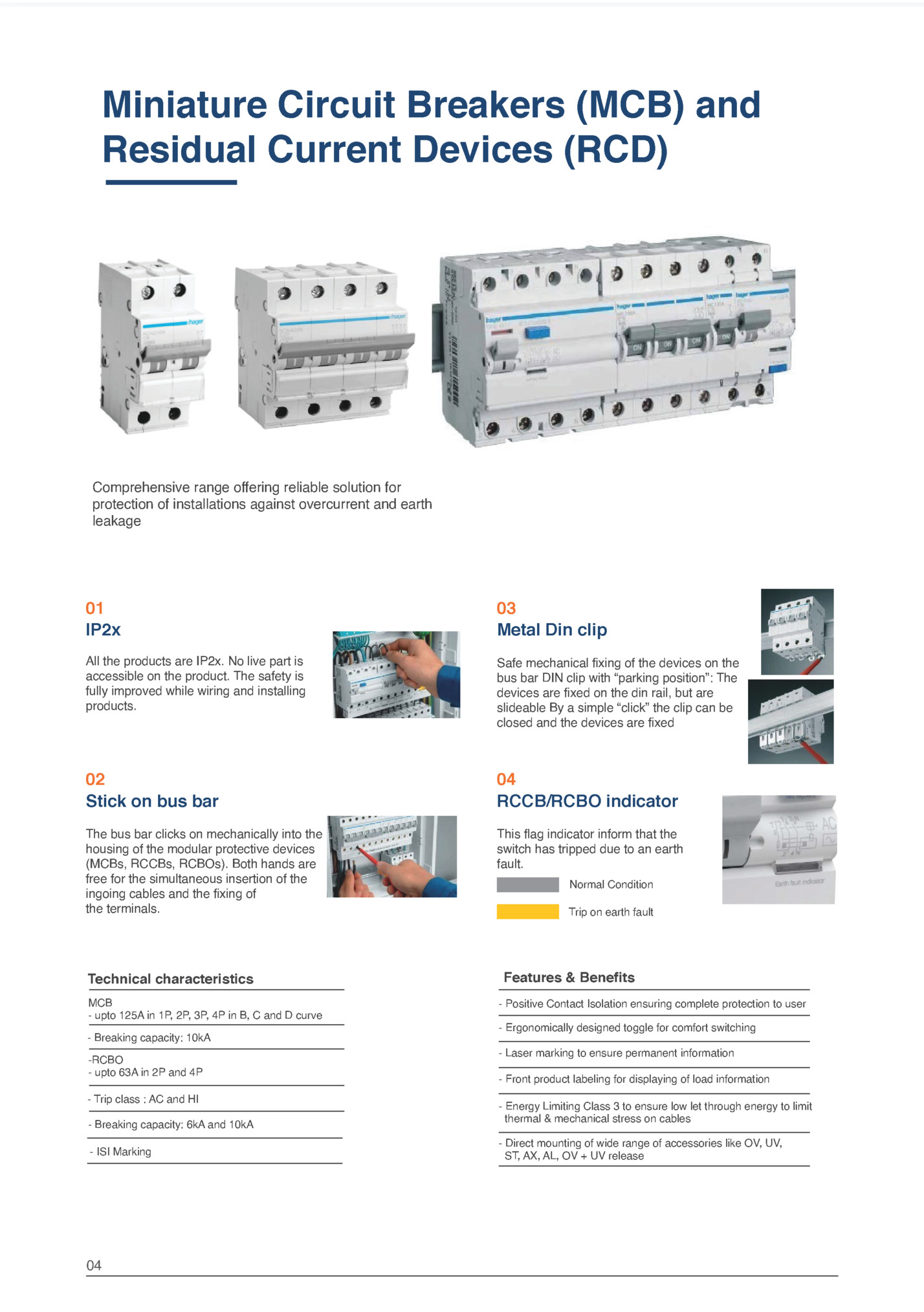

Residual Current Devices (RCD) Comprehensive range offering reliable solution for protection of installations against overcurrent and earth leakage 01 IP2x 03 Metal Din clip All the products are IP2x. No live part is accessible on the product. The safety is fully improved while wiring and installing products. Safe mechanical fixing of the devices on the bus bar DIN clip with “parking position”: The devices are fixed on the din rail, but are slideable By a simple “click” the clip can be closed and the devices are fixed 02 Stick on bus bar 04 RCCB/RCBO indicator The bus bar clicks on mechanically into the housing of the modular protective devices (MCBs, RCCBs, RCBOs). Both hands are free for the simultaneous insertion of the ingoing cables and the fixing of the terminals. This flag indicator inform that the switch has tripped due to an earth fault. Technical characteristics MCB - upto 125A in 1P, 2P, 3P, 4P in B, C and D curve - Breaking capacity: 10kA -RCBO - upto 63A in 2P and 4P - Trip class : AC and HI - Breaking capacity: 6kA and 10kA - ISI Marking 04 Normal Condition Trip on earth fault Features & Benefits - Positive Contact Isolation ensuring complete protection to user - Ergonomically designed toggle for comfort switching - Laser marking to ensure permanent information - Front product labeling for displaying of load information - Energy Limiting Class 3 to ensure low let through energy to limit thermal & mechanical stress on cables - Direct mounting of wide range of accessories like OV, UV, ST, AX, AL, OV + UV release

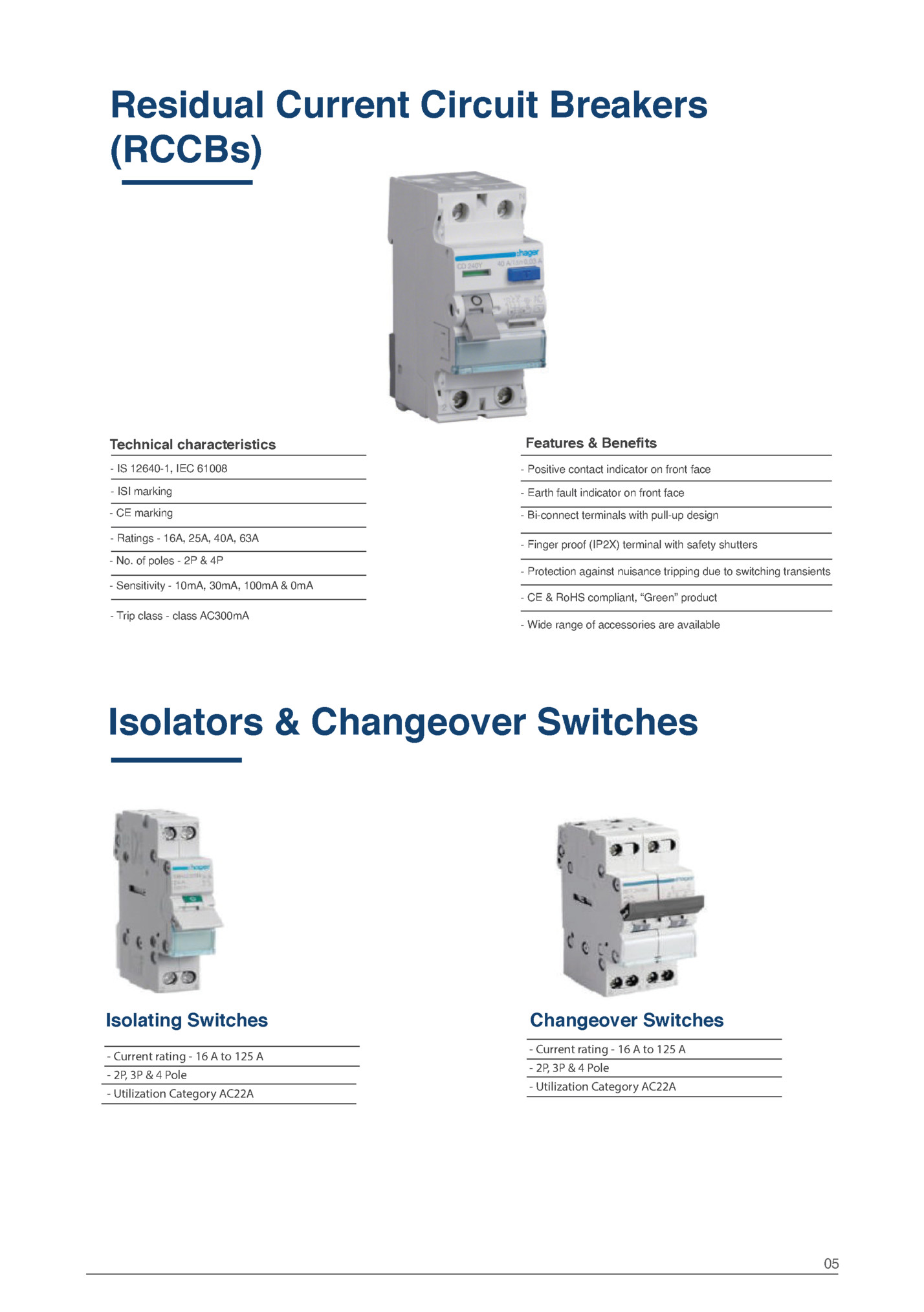

(RCCBs) Technical characteristics Features & Benefits - IS 12640-1, IEC 61008 - Positive contact indicator on front face - ISI marking - Earth fault indicator on front face - CE marking - Bi-connect terminals with pull-up design - Ratings - 16A, 25A, 40A, 63A - No. of poles - 2P & 4P - Sensitivity - 10mA, 30mA, 100mA & 0mA - Trip class - class AC300mA - Finger proof (IP2X) terminal with safety shutters - Protection against nuisance tripping due to switching transients - CE & RoHS compliant, “Green” product - Wide range of accessories are available Isolators & Changeover Switches Isolating Switches - Current rating - 16 A to 125 A - 2P, 3P & 4 Pole - Utilization Category AC22A Changeover Switches - Current rating - 16 A to 125 A - 2P, 3P & 4 Pole - Utilization Category AC22A 05

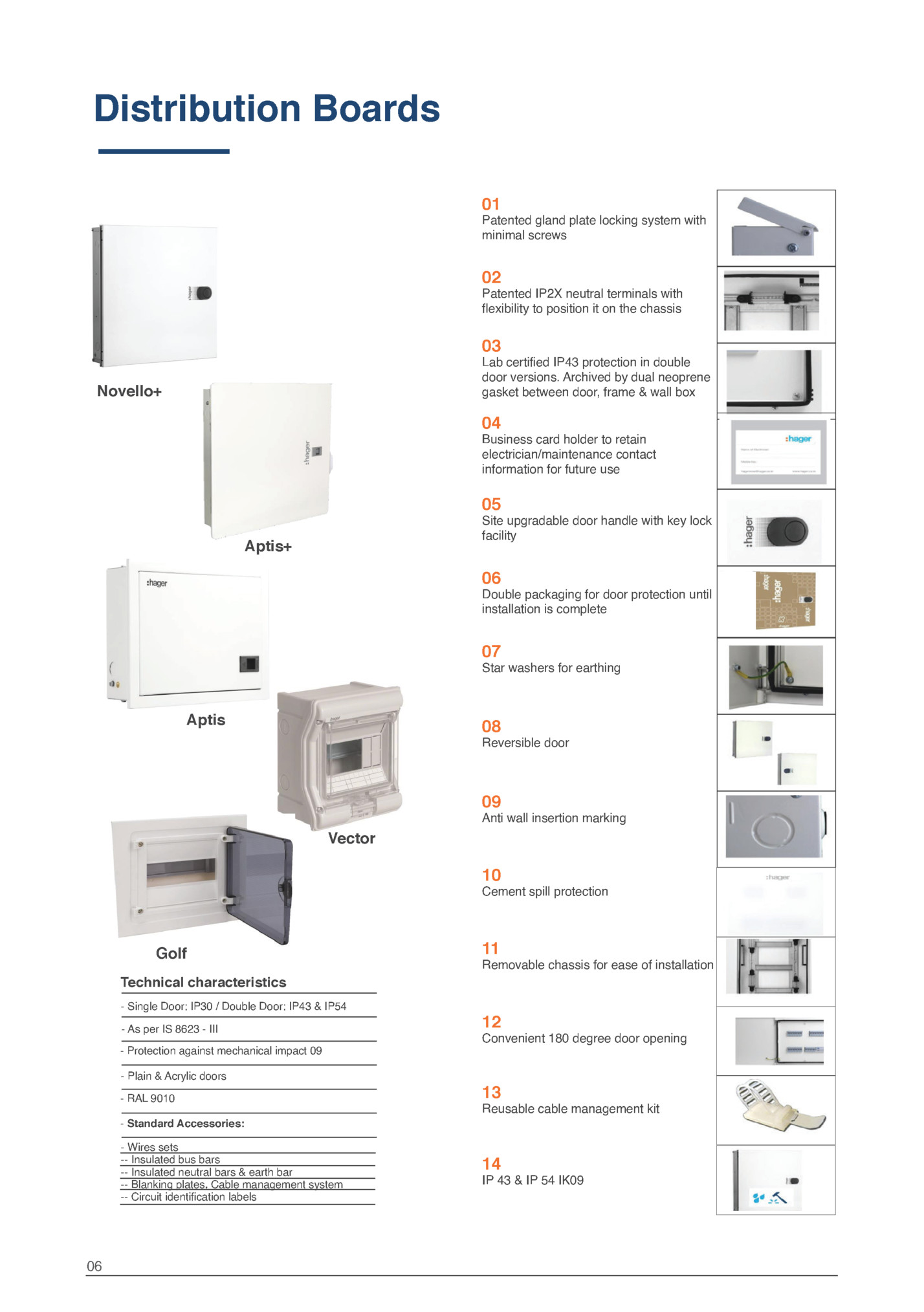

01 Patented gland plate locking system with minimal screws 02 Patented IP2X neutral terminals with flexibility to position it on the chassis 03 Lab certified IP43 protection in double door versions. Archived by dual neoprene gasket between door, frame & wall box Novello+ 04 Business card holder to retain electrician/maintenance contact information for future use 05 Site upgradable door handle with key lock facility Aptis+ 06 Double packaging for door protection until installation is complete 07 Star washers for earthing Aptis 08 Reversible door 09 Vector Anti wall insertion marking 10 Cement spill protection Golf Technical characteristics - Single Door: IP30 / Double Door: IP43 & IP54 - As per IS 8623 - III - Protection against mechanical impact 09 - Plain & Acrylic doors - RAL 9010 - Standard Accessories: - Wires sets -- Insulated bus bars -- Insulated neutral bars & earth bar -- Blanking plates, Cable management system -- Circuit identification labels 06 11 Removable chassis for ease of installation 12 Convenient 180 degree door opening 13 Reusable cable management kit 14 IP 43 & IP 54 IK09

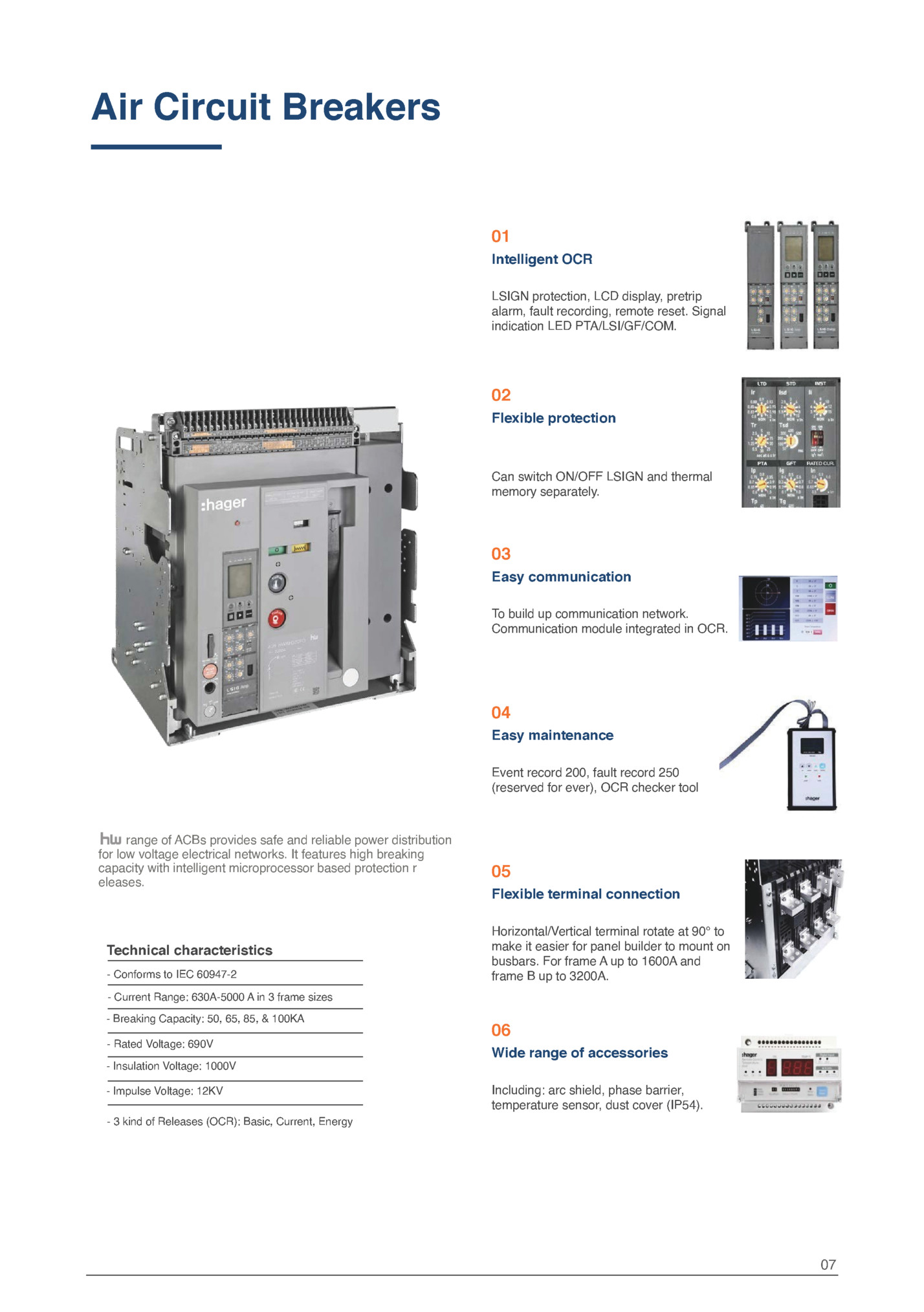

01 Intelligent OCR LSIGN protection, LCD display, pretrip alarm, fault recording, remote reset. Signal indication LED PTA/LSI/GF/COM. 02 Flexible protection Can switch ON/OFF LSIGN and thermal memory separately. 03 Easy communication To build up communication network. Communication module integrated in OCR. 04 Easy maintenance Event record 200, fault record 250 (reserved for ever), OCR checker tool range of ACBs provides safe and reliable power distribution for low voltage electrical networks. It features high breaking capacity with intelligent microprocessor based protection r eleases. Technical characteristics - Conforms to IEC 60947-2 05 Flexible terminal connection Horizontal/Vertical terminal rotate at 90° to make it easier for panel builder to mount on busbars. For frame A up to 1600A and frame B up to 3200A. - Current Range: 630A-5000 A in 3 frame sizes - Breaking Capacity: 50, 65, 85, & 100KA - Rated Voltage: 690V - Insulation Voltage: 1000V - Impulse Voltage: 12KV - 3 kind of Releases (OCR): Basic, Current, Energy 06 Wide range of accessories Including: arc shield, phase barrier, temperature sensor, dust cover (IP54). 07

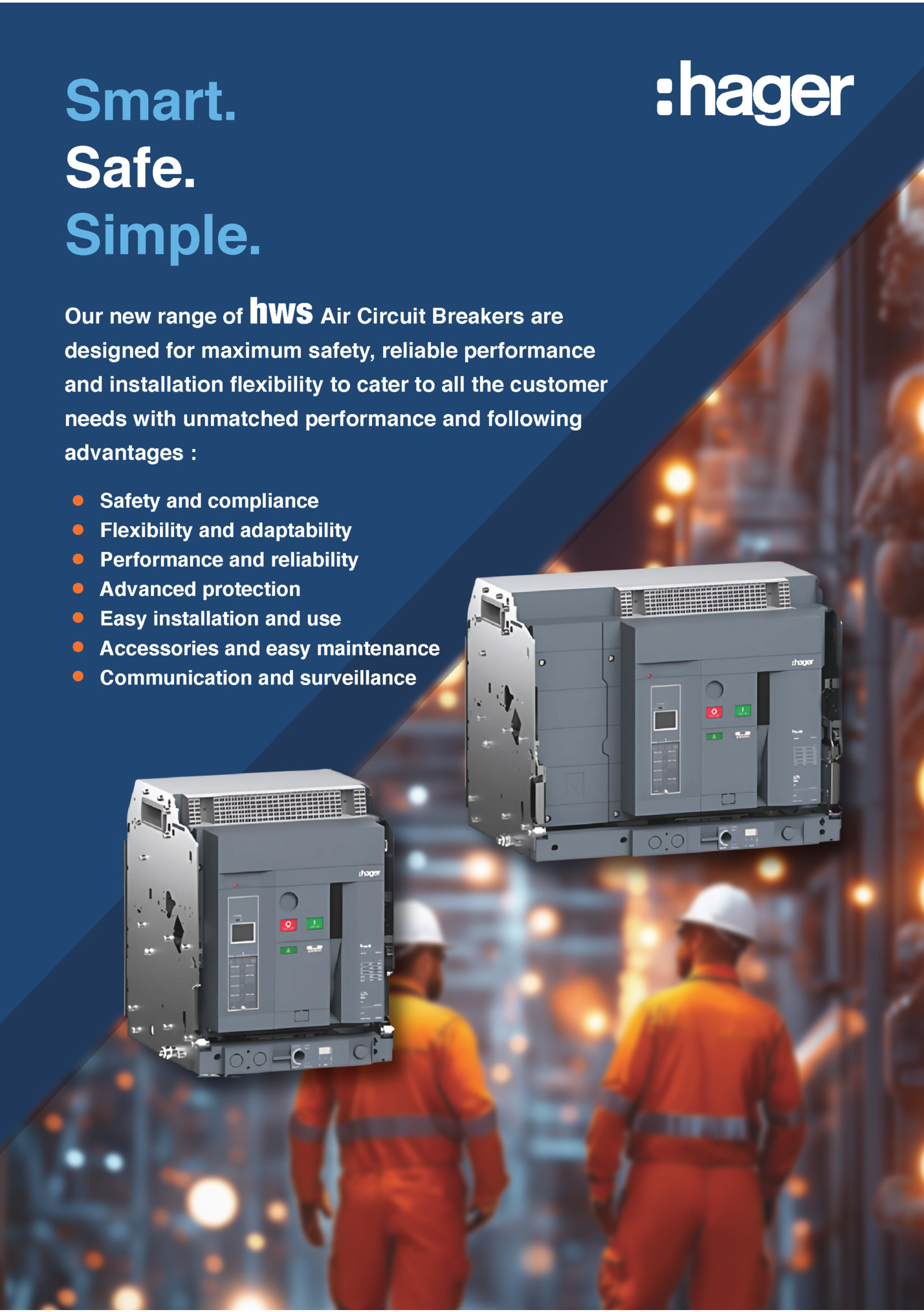

Safe. Simple. Our new range of hws Air Circuit Breakers are designed for maximum safety, reliable performance and installation flexibility to cater to all the customer needs with unmatched performance and following advantages : Safety and compliance Flexibility and adaptability Performance and reliability Advanced protection Easy installation and use Accessories and easy maintenance Communication and surveillance -122.9503 in

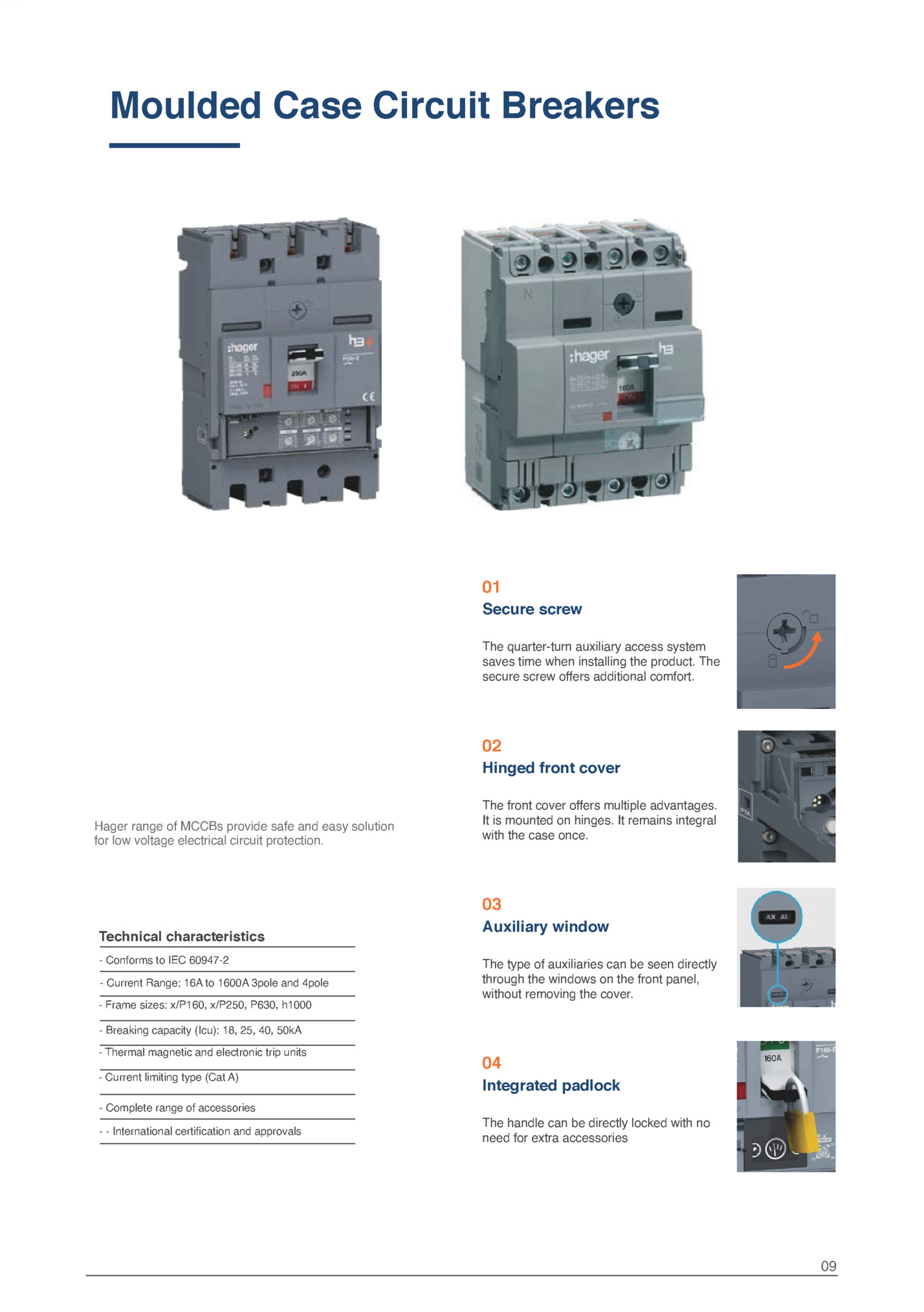

01 Secure screw The quarter-turn auxiliary access system saves time when installing the product. The secure screw offers additional comfort. 02 Hinged front cover Hager range of MCCBs provide safe and easy solution for low voltage electrical circuit protection. The front cover offers multiple advantages. It is mounted on hinges. It remains integral with the case once. 03 Technical characteristics - Conforms to IEC 60947-2 - Current Range: 16A to 1600A 3pole and 4pole - Frame sizes: x/P160, x/P250, P630, h1000 Auxiliary window The type of auxiliaries can be seen directly through the windows on the front panel, without removing the cover. - Breaking capacity (Icu): 18, 25, 40, 50kA - Thermal magnetic and electronic trip units - Current limiting type (Cat A) - Complete range of accessories - - International certification and approvals 04 Integrated padlock The handle can be directly locked with no need for extra accessories 09
