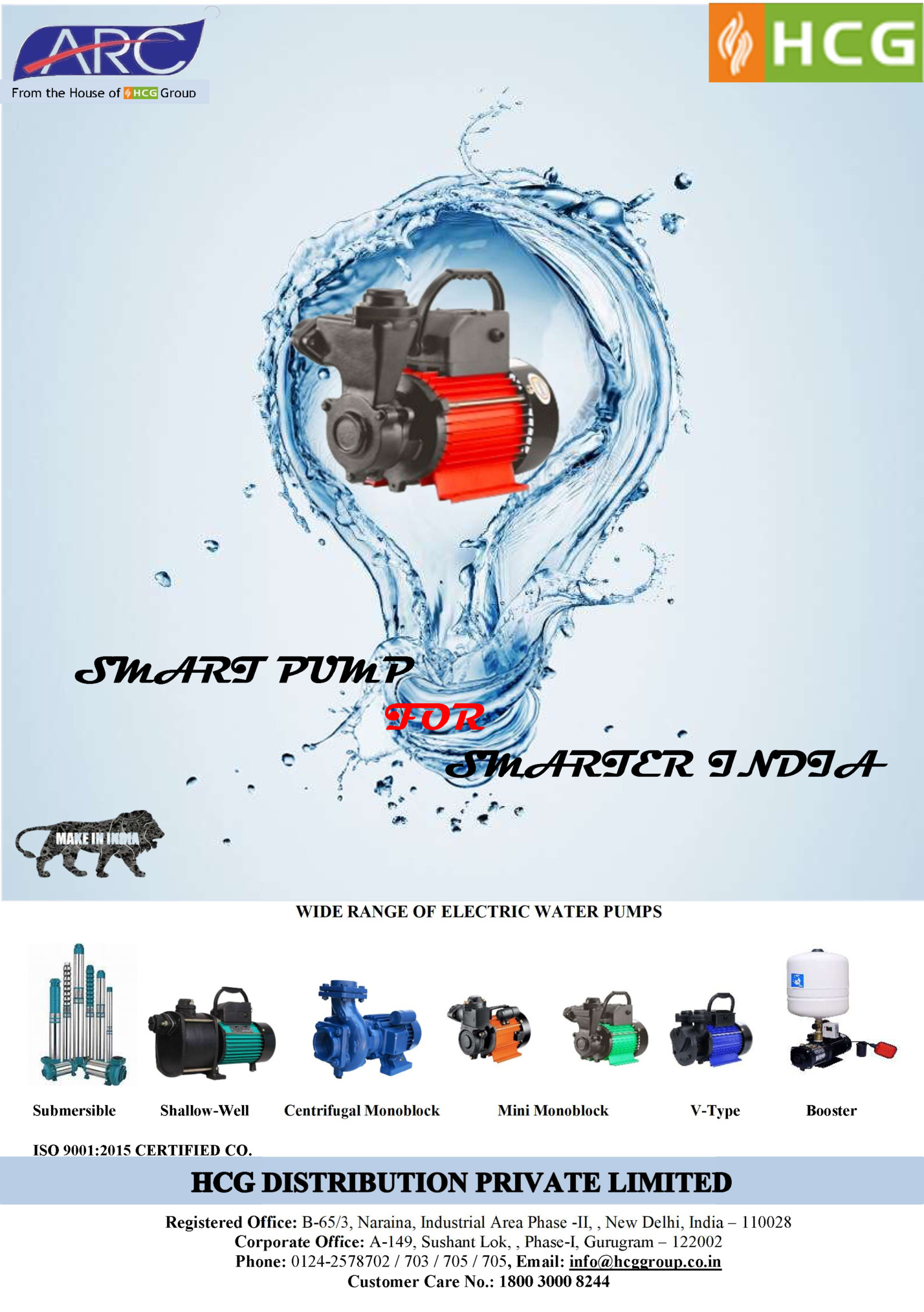

Group SMART PUMP FOR SMARTER INDIA WIDE RANGE OF ELECTRIC WATER PUMPS Submersible Shallow-Well Centrifugal Monoblock Mini Monoblock V-Type ISO 9001:2015 CERTIFIED CO. Registered Office: B-65/3, Naraina, Industrial Area Phase -II, , New Delhi, India – 110028 Corporate Office: A-149, Sushant Lok, , Phase-I, Gurugram – 122002 Phone: 0124-2578702 / 703 / 705 / 705, Email: info@hcggroup.co.in Customer Care No.: 1800 3000 8244 Booster

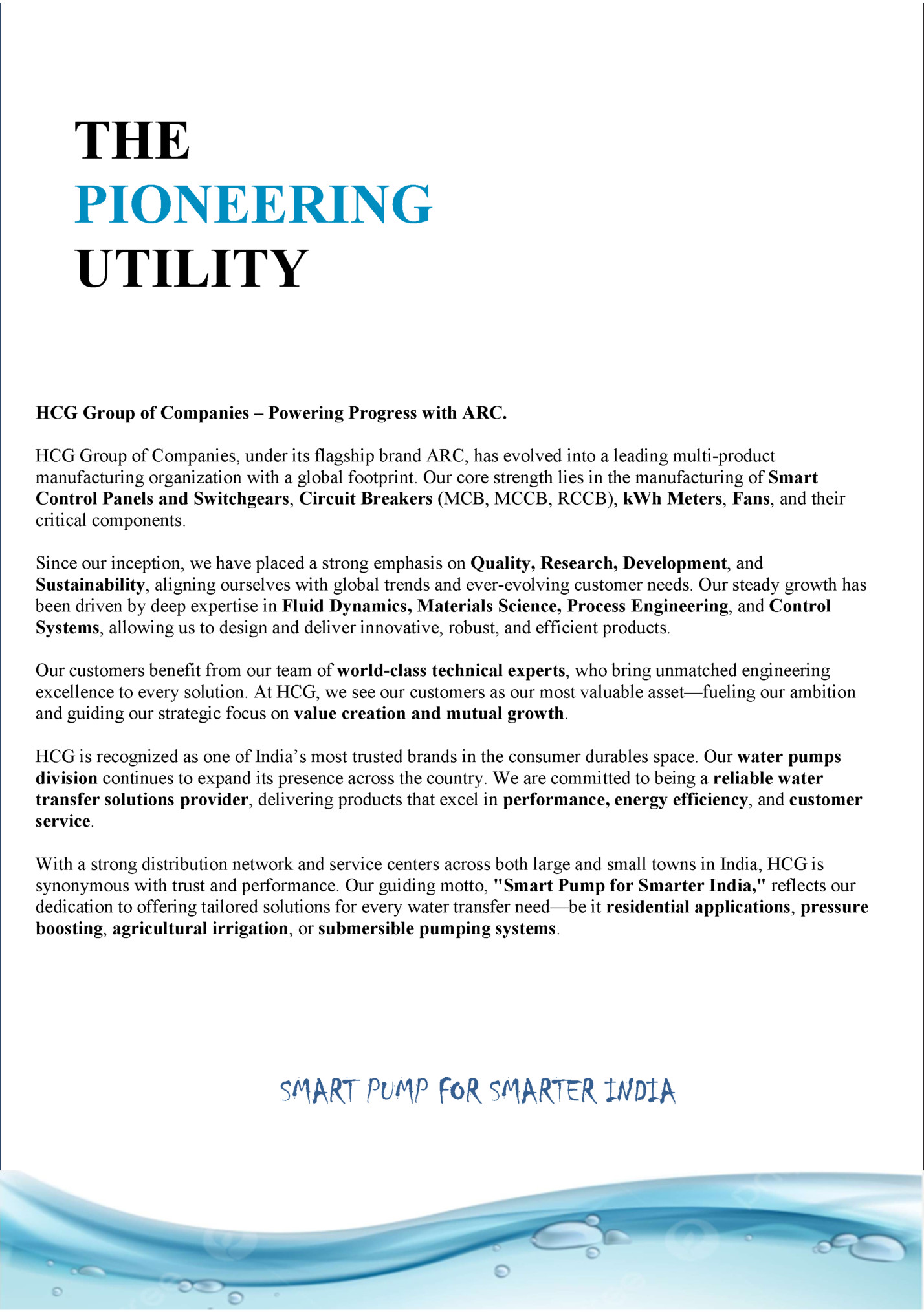

PIONEERING UTILITY HCG Group of Companies – Powering Progress with ARC. HCG Group of Companies, under its flagship brand ARC, has evolved into a leading multi-product manufacturing organization with a global footprint. Our core strength lies in the manufacturing of Smart Control Panels and Switchgears, Circuit Breakers (MCB, MCCB, RCCB), kWh Meters, Fans, and their critical components. Since our inception, we have placed a strong emphasis on Quality, Research, Development, and Sustainability, aligning ourselves with global trends and ever-evolving customer needs. Our steady growth has been driven by deep expertise in Fluid Dynamics, Materials Science, Process Engineering, and Control Systems, allowing us to design and deliver innovative, robust, and efficient products. Our customers benefit from our team of world-class technical experts, who bring unmatched engineering excellence to every solution. At HCG, we see our customers as our most valuable asset—fueling our ambition and guiding our strategic focus on value creation and mutual growth. HCG is recognized as one of India’s most trusted brands in the consumer durables space. Our water pumps division continues to expand its presence across the country. We are committed to being a reliable water transfer solutions provider, delivering products that excel in performance, energy efficiency, and customer service. With a strong distribution network and service centers across both large and small towns in India, HCG is synonymous with trust and performance. Our guiding motto, "Smart Pump for Smarter India," reflects our dedication to offering tailored solutions for every water transfer need—be it residential applications, pressure boosting, agricultural irrigation, or submersible pumping systems. SMART PUMP FOR SMARTER INDIA 01
Applications: • Domestic Farms Irrigation Farms • Gardens Pressure Boosting Shallow well Small farms • Washing Residential building Hotels Hospitals Schools Rural water supply Multi-storey Drinking water buildings supplies Features High grade material of construction. High quality enameled copper windings for better efficiency. Motor designed to operate under wide range of voltage. Hydraulic design ensures good suction lift and high operating efficiency. Dynamically balance rotating components for minimum vibration & noise while operation. Anti-corrosive costing for prolonged 01

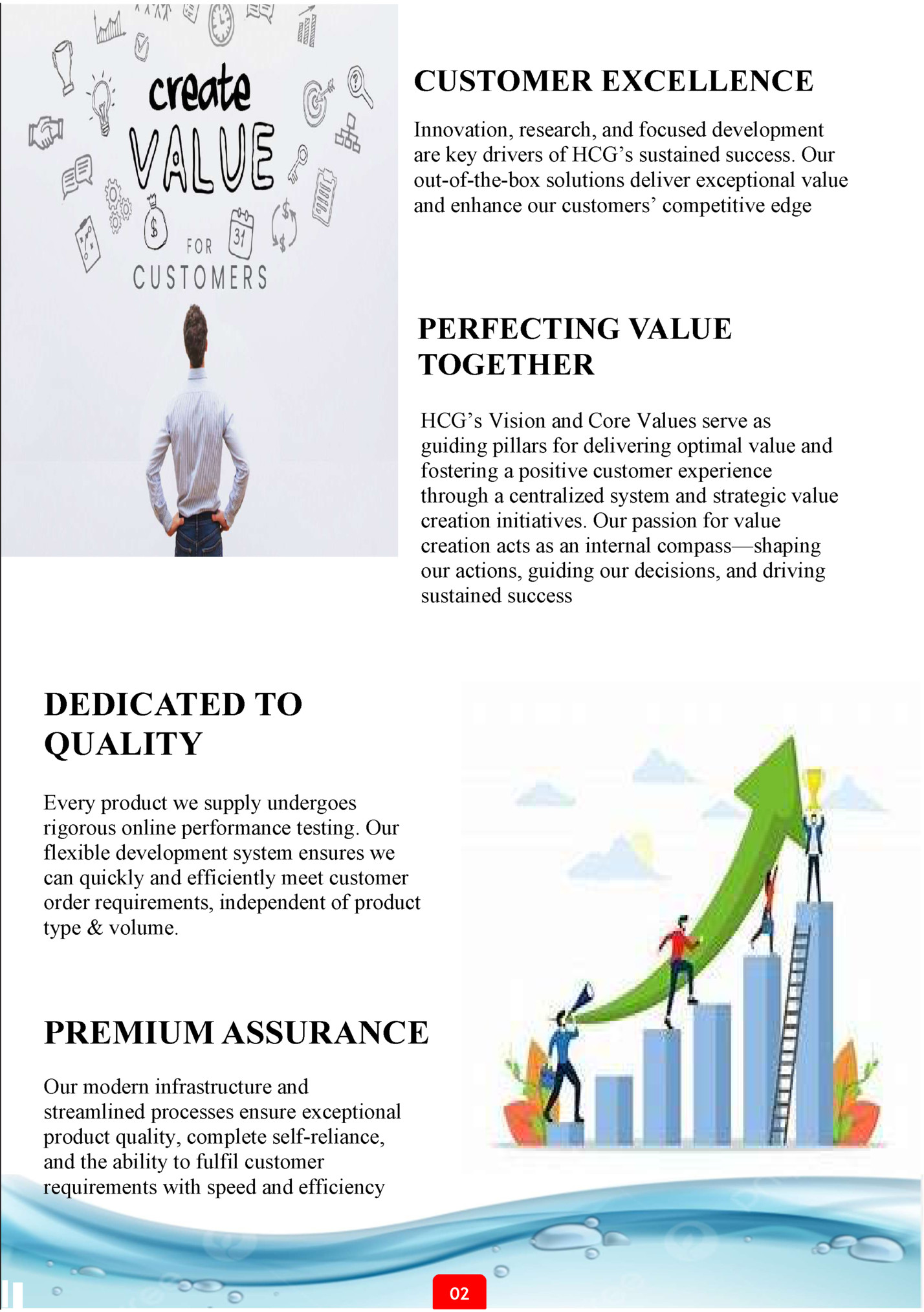

Innovation, research, and focused development are key drivers of HCG’s sustained success. Our out-of-the-box solutions deliver exceptional value and enhance our customers’ competitive edge PERFECTING VALUE TOGETHER HCG’s Vision and Core Values serve as guiding pillars for delivering optimal value and fostering a positive customer experience through a centralized system and strategic value creation initiatives. Our passion for value creation acts as an internal compass—shaping our actions, guiding our decisions, and driving sustained success DEDICATED TO QUALITY Every product we supply undergoes rigorous online performance testing. Our flexible development system ensures we can quickly and efficiently meet customer order requirements, independent of product type & volume. PREMIUM ASSURANCE Our modern infrastructure and streamlined processes ensure exceptional product quality, complete self-reliance, and the ability to fulfil customer requirements with speed and efficiency 02

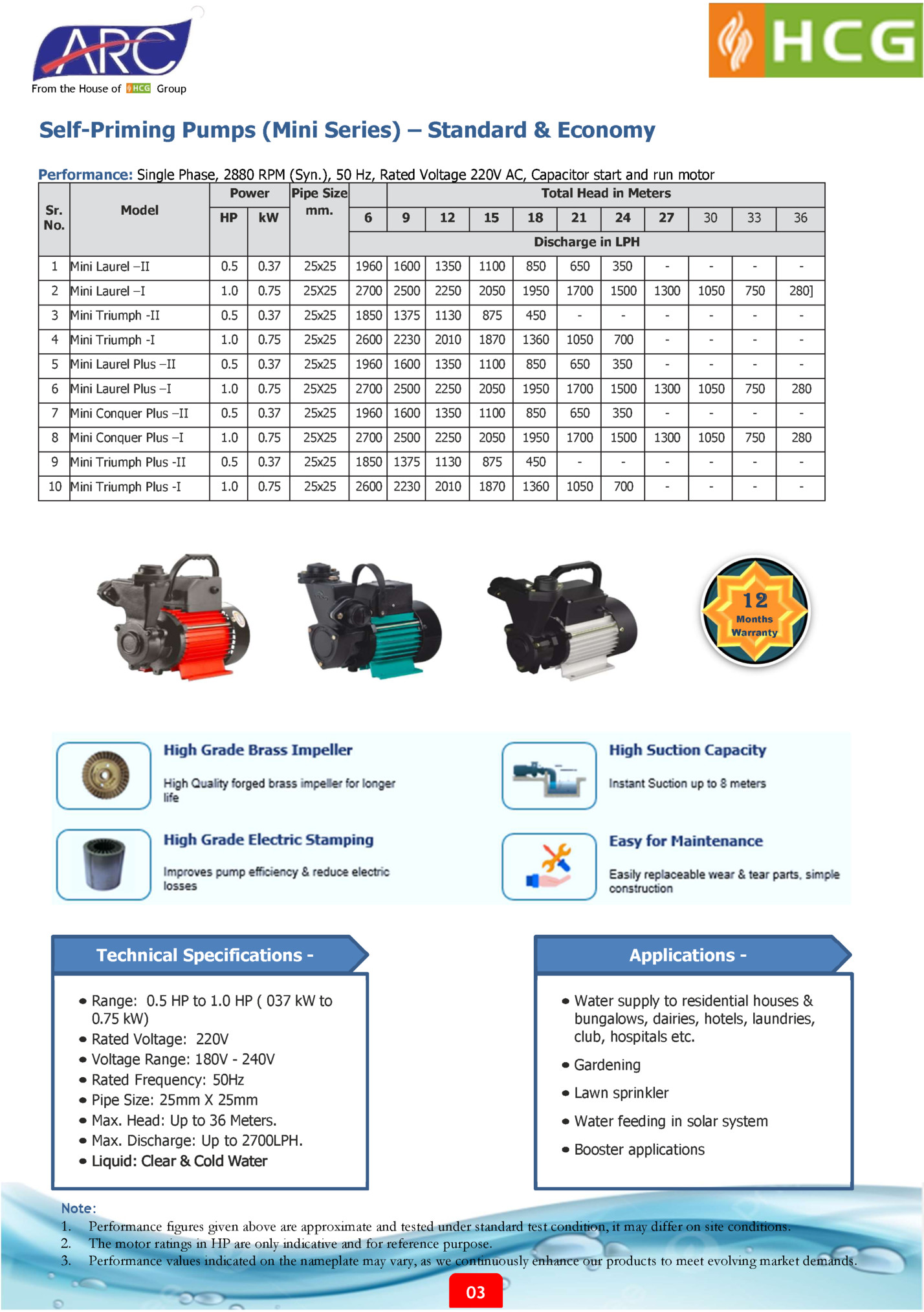

Group Self-Priming Pumps (Mini Series) – Standard & Economy Performance: Single Phase, 2880 RPM (Syn.), 50 Hz, Rated Voltage 220V AC, Capacitor start and run motor Power Sr. No. Model HP kW Pipe Size mm. Total Head in Meters 6 9 12 15 18 21 24 27 30 33 36 Discharge in LPH 1 Mini Laurel –II 0.5 0.37 25x25 1960 1600 1350 1100 850 650 350 - - - - 2 Mini Laurel –I 1.0 0.75 25X25 2700 2500 2250 2050 1950 1700 1500 1300 1050 750 280] 3 Mini Triumph -II 0.5 0.37 25x25 1850 1375 1130 875 450 - - - - - - 4 Mini Triumph -I 1.0 0.75 25x25 2600 2230 2010 1870 1360 1050 700 - - - - 5 Mini Laurel Plus –II 0.5 0.37 25x25 1960 1600 1350 1100 850 650 350 - - - - 6 Mini Laurel Plus –I 1.0 0.75 25X25 2700 2500 2250 2050 1950 1700 1500 1300 1050 750 280 7 Mini Conquer Plus –II 0.5 0.37 25x25 1960 1600 1350 1100 850 650 350 - - - - 8 Mini Conquer Plus –I 1.0 0.75 25X25 2700 2500 2250 2050 1950 1700 1500 1300 1050 750 280 9 Mini Triumph Plus -II 0.5 0.37 25x25 1850 1375 1130 875 450 - - - - - - 10 Mini Triumph Plus -I 1.0 0.75 25x25 2600 2230 2010 1870 1360 1050 700 - - - - 12 Months Warranty Technical Specifications - Applications - Range: 0.5 HP to 1.0 HP ( 037 kW to 0.75 kW) Rated Voltage: 220V Voltage Range: 180V - 240V Rated Frequency: 50Hz Pipe Size: 25mm X 25mm Max. Head: Up to 36 Meters. Max. Discharge: Up to 2700LPH. Water supply to residential houses & bungalows, dairies, hotels, laundries, club, hospitals etc. Gardening Lawn sprinkler Water feeding in solar system Booster applications Note: 1. 2. 3. Performance figures given above are approximate and tested under standard test condition, it may differ on site conditions. The motor ratings in HP are only indicative and for reference purpose. Performance values indicated on the nameplate may vary, as we continuously enhance our products to meet evolving market demands. 03

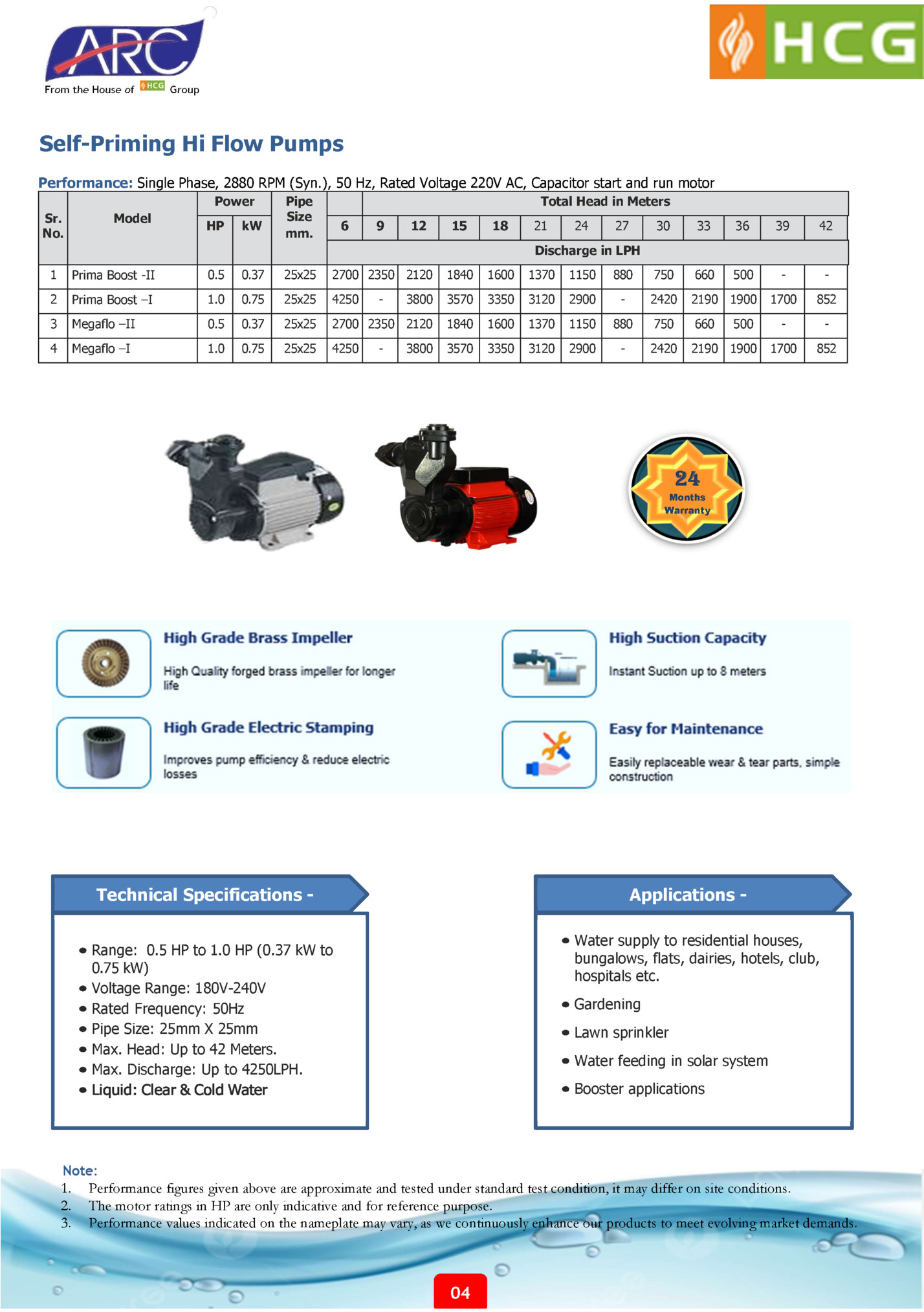

Group Self-Priming Hi Flow Pumps Performance: Single Phase, 2880 RPM (Syn.), 50 Hz, Rated Voltage 220V AC, Capacitor start and run motor Power Sr. No. Model HP kW Pipe Size mm. Total Head in Meters 6 9 12 15 18 21 24 27 30 33 36 39 42 500 - - 1700 852 - - 1700 852 Discharge in LPH 1 Prima Boost -II 0.5 0.37 25x25 2700 2350 2120 1840 1600 1370 1150 880 750 660 2 Prima Boost –I 1.0 0.75 25x25 4250 3800 3570 3350 3120 2900 - 2420 2190 1900 3 Megaflo –II 0.5 0.37 25x25 2700 2350 2120 1840 1600 1370 1150 880 750 660 4 Megaflo –I 1.0 0.75 25x25 4250 3570 3350 3120 2900 - 2420 2190 1900 - - 3800 500 24 Months Warranty Technical Specifications - Applications Water supply to residential houses, bungalows, flats, dairies, hotels, club, hospitals etc. Range: 0.5 HP to 1.0 HP (0.37 kW to 0.75 kW) Voltage Range: 180V-240V Rated Frequency: 50Hz Pipe Size: 25mm X 25mm Max. Head: Up to 42 Meters. Max. Discharge: Up to 4250LPH. Gardening Lawn sprinkler Water feeding in solar system Booster applications Note: 1. 2. 3. Performance figures given above are approximate and tested under standard test condition, it may differ on site conditions. The motor ratings in HP are only indicative and for reference purpose. Performance values indicated on the nameplate may vary, as we continuously enhance our products to meet evolving market demands. 04

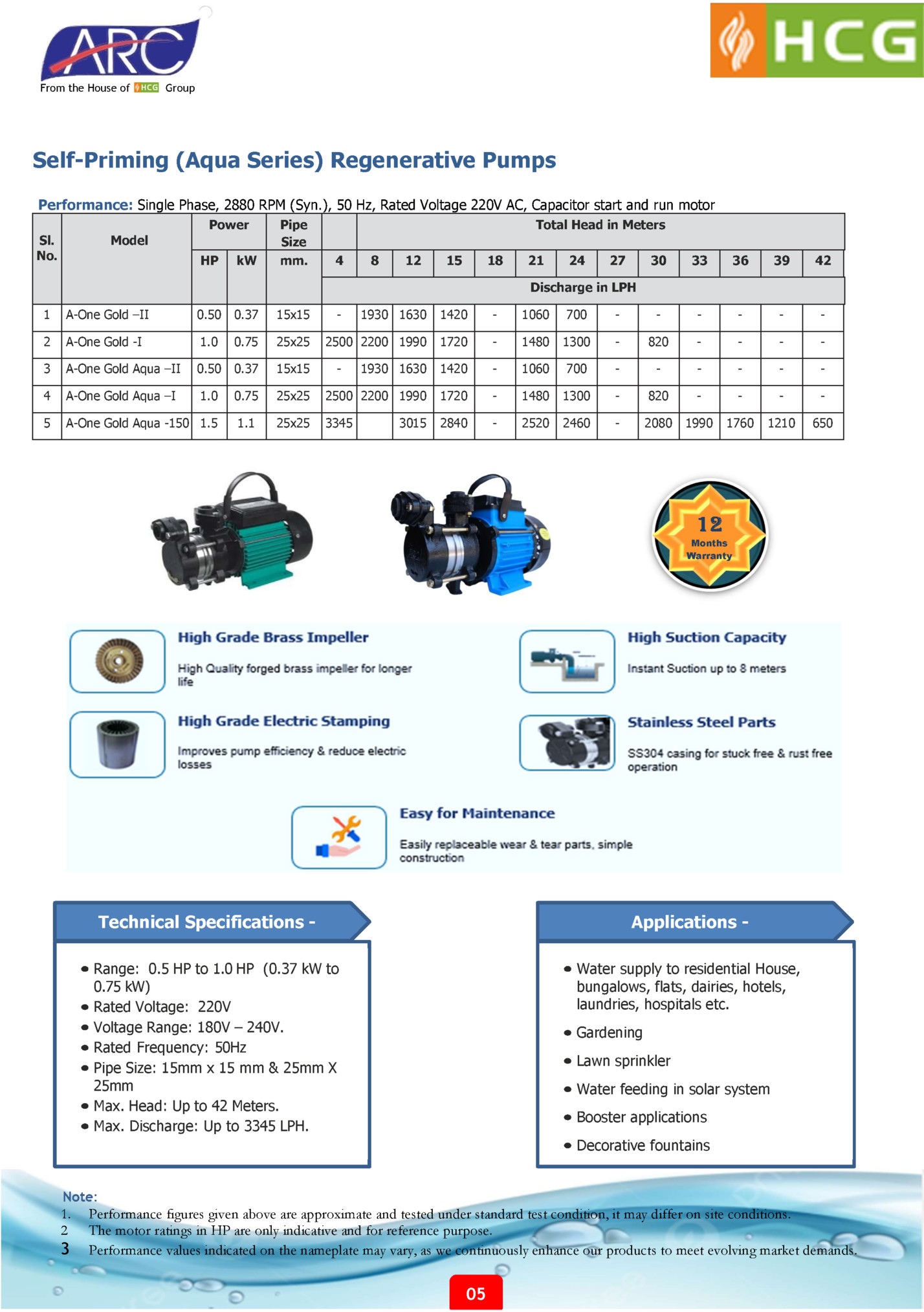

Group Self-Priming (Aqua Series) Regenerative Pumps Performance: Single Phase, 2880 RPM (Syn.), 50 Hz, Rated Voltage 220V AC, Capacitor start and run motor Power Sl. No. Model HP kW Pipe Size mm. Total Head in Meters 4 8 12 15 18 21 24 27 30 33 36 39 42 Discharge in LPH 1 A-One Gold –II 0.50 0.37 15x15 2 A-One Gold -I 1.0 0.75 25x25 3 A-One Gold Aqua –II 0.50 0.37 15x15 4 A-One Gold Aqua –I 1.0 0.75 5 A-One Gold Aqua -150 1.5 1.1 - 1930 1630 1420 - 1060 700 - - - - - - 2500 2200 1990 1720 - 1480 1300 - 820 - - - - 1930 1630 1420 - 1060 700 - - - - - - 25x25 2500 2200 1990 1720 - 1480 1300 - 820 - - - - 25x25 3345 2840 - 2520 2460 - 2080 1990 1760 1210 650 - 3015 12 Months Warranty Technical Specifications - Applications - Range: 0.5 HP to 1.0 HP (0.37 kW to 0.75 kW) Rated Voltage: 220V Voltage Range: 180V – 240V. Rated Frequency: 50Hz Pipe Size: 15mm x 15 mm & 25mm X 25mm Max. Head: Up to 42 Meters. Max. Discharge: Up to 3345 LPH. Water supply to residential House, bungalows, flats, dairies, hotels, laundries, hospitals etc. Gardening Lawn sprinkler Water feeding in solar system Booster applications Decorative fountains Note: 1. 2 3 Performance figures given above are approximate and tested under standard test condition, it may differ on site conditions. The motor ratings in HP are only indicative and for reference purpose. Performance values indicated on the nameplate may vary, as we continuously enhance our products to meet evolving market demands. 05

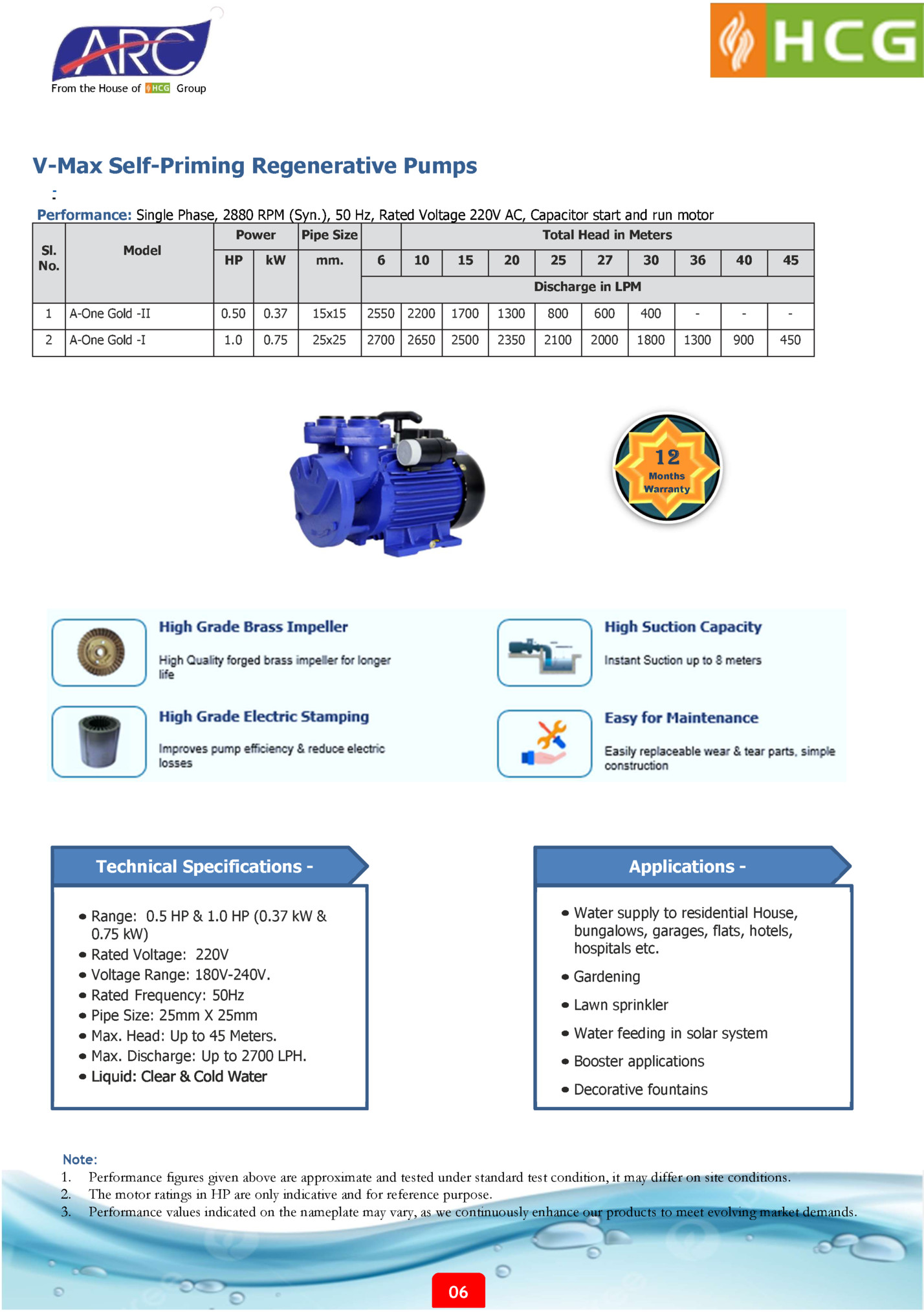

Group V-Max Self-Priming Regenerative Pumps Performance: Single Phase, 2880 RPM (Syn.), 50 Hz, Rated Voltage 220V AC, Capacitor start and run motor Power Sl. No. Model HP Pipe Size kW mm. Total Head in Meters 6 10 15 20 25 27 30 36 40 45 Discharge in LPM 1 A-One Gold -II 0.50 0.37 15x15 2550 2200 1700 1300 800 600 400 - - - 2 A-One Gold -I 1.0 0.75 25x25 2700 2650 2500 2350 2100 2000 1800 1300 900 450 12 Months Warranty Technical Specifications - Applications - Range: 0.5 HP & 1.0 HP (0.37 kW & 0.75 kW) Rated Voltage: 220V Voltage Range: 180V-240V. Rated Frequency: 50Hz Pipe Size: 25mm X 25mm Max. Head: Up to 45 Meters. Max. Discharge: Up to 2700 LPH. Water supply to residential House, bungalows, garages, flats, hotels, hospitals etc. Gardening Lawn sprinkler Water feeding in solar system Booster applications Decorative fountains Note: 1. 2. 3. Performance figures given above are approximate and tested under standard test condition, it may differ on site conditions. The motor ratings in HP are only indicative and for reference purpose. Performance values indicated on the nameplate may vary, as we continuously enhance our products to meet evolving market demands. 06

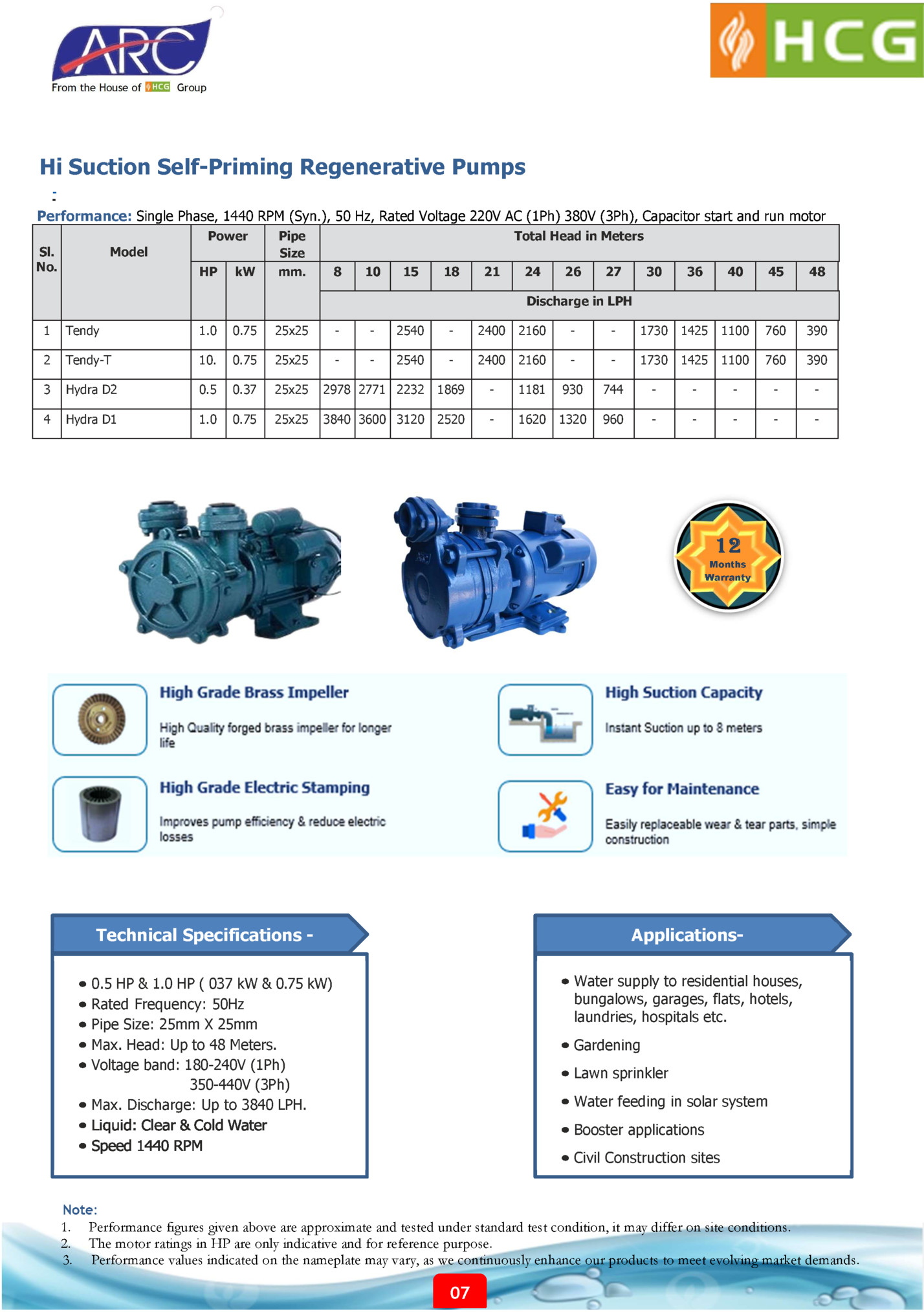

Group Hi Suction Self-Priming Regenerative Pumps Performance: Single Phase, 1440 RPM (Syn.), 50 Hz, Rated Voltage 220V AC (1Ph) 380V (3Ph), Capacitor start and run motor Power Sl. No. Model HP kW Pipe Size mm. Total Head in Meters 8 10 15 18 21 24 26 27 30 36 40 45 48 Discharge in LPH 1 Tendy 1.0 0.75 25x25 - - 2540 - 2400 2160 - - 1730 1425 1100 760 390 2 Tendy-T 10. 0.75 25x25 - - 2540 - 2400 2160 - - 1730 1425 1100 760 390 3 Hydra D2 0.5 0.37 25x25 2978 2771 2232 1869 - 1181 930 744 - - - - - 4 Hydra D1 1.0 0.75 25x25 3840 3600 3120 2520 - 1620 1320 960 - - - - - 12 Months Warranty Technical Specifications - ApplicationsWater supply to residential houses, bungalows, garages, flats, hotels, laundries, hospitals etc. 0.5 HP & 1.0 HP ( 037 kW & 0.75 kW) Rated Frequency: 50Hz Pipe Size: 25mm X 25mm Max. Head: Up to 48 Meters. Voltage band: 180-240V (1Ph) 350-440V (3Ph) Max. Discharge: Up to 3840 LPH. Gardening Lawn sprinkler Water feeding in solar system Booster applications Civil Construction sites Note: 1. 2. 3. Performance figures given above are approximate and tested under standard test condition, it may differ on site conditions. The motor ratings in HP are only indicative and for reference purpose. Performance values indicated on the nameplate may vary, as we continuously enhance our products to meet evolving market demands. 07
