General Access &Security System Catalog Sale Engineer Manager:Tim Wu/Mobile/WhatSapp&Wechat:+86-15813805304 Email:tim@sintronictech.com , Official website https://sintronictech.com Access Control System (Page 2-63) Officie Building Access Control System Page 2-31 Intercom Access System Smart Lock Access System Parking Access System Page 32-34 Page 35-55 Page 56-64 Security Guard System Turnstile Gate System Parking Guidance System About Us Page 65-75 Page 76-86 Page 87-97 Page 98-127 All Rights Reserved By Shenzhen Sintronic Technology Company Limited https://sintronictech.com 1
https://www.sintronicaccess.com 1. Officie Build Access Control System Catalog Access Controller Stand Alone Unit RFID Reader Page 3-5 Page 6-10 Page 11 WIFI Module Remote Control Page 12 Page 13 Exit Button Emergency Button Page 14-16 Page 17 RFID Card Page 18-19 Eletrical Lock Bracket Power Supply Page 20-27 Page 27-29 Page 30-31 All Rights Reserved By Shenzhen Sintronic Technology Company Limited https://sintronictech.com 2
Name Model Picture Technical Parameters Client Request Remark Access Controller 32Bit Series (LAN Remote Control,Web Control) 1 2 3 4 Single Door Access Controller TCP/IP 2 Door Access Controller TCP/IP 4 Door Access Controller TCP/IP Integrated Fire and Alarm Extend Board 3201 3202 3204 32EXT Size:160*106mm Power Box Size:273mm*228mm*65mm Communication Model:TCP/IP Power Supply:12VDC 4-7A Reader Input Format:Wiegand26/34 Card Capacity:40,000 Units Record Capacity:100,000 Units Database available:Access,SQL2008 ,compatible with SQL2000,SQL2005 Software:Free 1.Integrated functions of remote access,interlock,antipass,multi-card.,ect 2.V8.81 Version Software Four relay alarm output. Connectable to fire signal Input Time delay 0～6000 second adjustable Can control the illegal break-in alarm All Rights Reserved By Shenzhen Sintronic Technology Company Limited https://sintronictech.com 3
Name Model Picture Technical Parameters Client Request Remark 64 Bit Series Premium (Barcode，Video Linkage ) 5 6 7 8 Single Door Access Controller TCP/IP 2 Door Access Controller TCP/IP 4 Door Access Controller TCP/IP Integrated Fire and Alarm Extend Board 6401 6402 Size:160*106mm Power Box Size:273mm*228mm*65mm Communication Model:TCP/IP Power Supply:12VDC 4-7A Reader Input Format:Wiegand2640 Card Capacity:40,000 Units Record Capacity:100,000 Units Database available:Access,SQL2008 ,compatible with SQL2000,SQL2005 Software:Free 6404 64EXT 1.Special Functions Of Bar Code Access and Support Video interliked to take screen shoot (Hivision Camera, 2.Option For OEM 4G 3.V8.5 Software Four relay alarm output. Connectable to fire signal Input Time delay 0～6000 second adjustable Can control the illegal break-in alarm All Rights Reserved By Shenzhen Sintronic Technology Company Limited https://sintronictech.com 4
Name Model Picture Technical Parameters Client Request Remark Elevator Controller 9 10 20 Floors Elevator ,Cabinet Access Controller Tcp/Ip 20 Floors Elevator Extend Board EC-20S EXT20 Size:160*106mm Power Box Size:273mm*228mm*65mm Communication Model:TCP/IP Power Supply:12VDC 4-7A Reader Input Format:Wiegand26/34 Card Capacity:20,000 Units Record Capacity:100,000 Units Database available:Access,SQL2008 ,compatible with SQL2000,SQL2005 Software:Free Integrated functions of remote access,interlock,anti-pass,multicard.,ect V8.81 Plus Version Software ◆ 300DT20 Extend Board ◆ Output：20 circuit All Rights Reserved By Shenzhen Sintronic Technology Company Limited https://sintronictech.com 5
Name Model Picture Technical Parameters Client Request Remark Stand Alone Unit Regular Standalone Unit 11 12 13 Outdoor Standalone Unit ID 125KHZ wg26 Outdoor Standalone Unit ID 125KHZ Economical Standalone Unit ID 125KHZ (keypad) SA-101 Waterproof stand alone unit Material:ABS Plastic Card Capacity:16000cards Card Type :EM card Reading Range:5-8cm Operation Mode:Card Working Voltage:12V DC+-10% Dimension:86*86*64mm CE /FCC/ROSH Qualify SA-102 Waterproof stand alone unit Material:ABS Plastic Card Capacity:1000cards Card Type :EM card Reading Range:5-8cm Operation Mode:Card Working Voltage:12V DC+-10% Dimension:86*86*64mm CE /FCC/ROSH Qualify SA-103 Waterproof stand alone unit Material:ABS Plastic Card Capacity:1000cards Card Type :EM card Reading Range:5-8cm Operation Mode:Card, Card+Password Working Voltage:12V DC+-10% Dimension:120*78*22 mm CE /FCC/ROSH Qualify All Rights Reserved By Shenzhen Sintronic Technology Company Limited https://sintronictech.com Economical 6
14 15 16 Name Standalone Unit (ID 125KHZ keypad) Touch Screen Stand alone Unit (Keypad with Night vision ) NFC Dual Frequency ID+IC Standalone Unit Model Picture Technical Parameters SA-104 Waterproof stand alone unit Material:ABS Plastic Card Capacity:1000cards Card Type :EM card Reading Range:5-8cm Operation Mode:Card, Card+Password Working Voltage:12V DC+-10% Dimension:121*57*20mm CE /FCC/ROSH Qualify SA-106 Remark Waterproof stand alone unit Material:ABS Plastic Card Capacity:2000cards Card Type :EM card Reading Range:5-8cm Operation Mode:Card, Card+Password Working Voltage:12V DC+-10% CE /FCC/ROSH Qualify Dimension:108*78*20mm SA-105 Client Request Waterproof stand alone unit Material:ABS Plastic Card Capacity:10000cards Card Type :EM card Reading Range:5-8cm Operation Mode:IC+ID Card, Card+Password Working Voltage:12V DC+-10% Dimension:121*57*20mm All Rights Reserved By Shenzhen Sintronic Technology Company Limited https://sintronictech.com Economical 7
Name Model Picture Technical Parameters Client Request Remark Metallic Standalone Unit 17 18 22 Metallic stand alone unit id 125Khz Metalic stand alone unit id 125Khz Fingerprint stand alone unit ID125KHZ SA-201 Waterproof stand alone unit Card Capacity:2000cards Card Type :EM card Reading Range:5-8cm Operation Mode:Card, Card+Password Working Voltage:12V DC+-10% CE /FCC/ROSH Qualify Dimension:140*58*27mm SA-202 Waterproof stand alone unit Card Capacity:1000cards Card Type :EM card Reading Range:5-8cm Operation Mode:Card, Card+Password Working Voltage:12V DC+-10% Dimension:120*76*28mm CE /FCC/ROSH Qualify SA-206 Working voltage: DC12V Static current: <100ma Unlocking method: fingerprint, password, IC card Fingerprint type: semi -conductor collection module Storage capacity: 120 fingerprint 120 cards a set of general passwords Reading card distance: 3-5cm All Rights Reserved By Shenzhen Sintronic Technology Company Limited https://sintronictech.com Card reading mode: WG26 output Management card: You can set up adding cards and delete cards 8

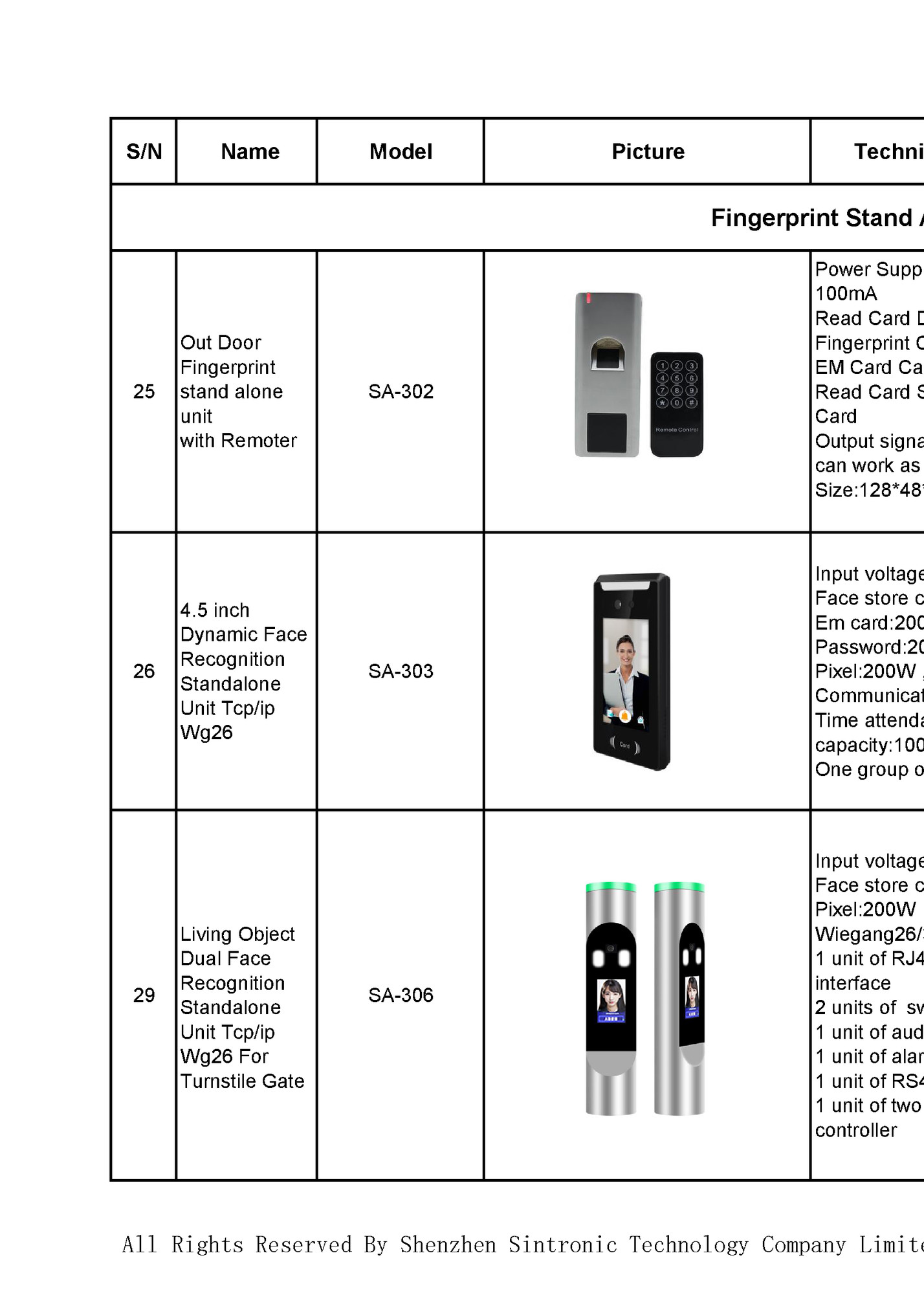

Name Model Picture Technical Parameters Client Request Remark Fingerprint Stand Alone Unit 25 26 29 Out Door Fingerprint stand alone unit with Remoter 4.5 inch Dynamic Face Recognition Standalone Unit Tcp/ip Wg26 Living Object Dual Face Recognition Standalone Unit Tcp/ip Wg26 For Turnstile Gate SA-302 Power Supply：DC 9-12V < 100mA Read Card Distance：0-60mm Fingerprint Capacity：1000 Units EM Card Capacity:2000 Units Read Card Style:Fingerprint , EM Card Output signal：Wiegand 26 and can work as stand alone unit Size:128*48*26mm SA-303 Input voltage:12DC Face store capacity 2000 Units Em card:2000units Password:2000 units Pixel:200W , Communication:TCP/IP Time attendance capacity:100,000 units One group of wiegand 26 signal SA-306 IP66 Input voltage:12DC Face store capacity:5000 Units Pixel:200W Wiegang26/34 output 1 unit of RJ45 10M/100M interface 2 units of switch signal output 1 unit of audio signal output 1 unit of alarm signal input 1 unit of RS485 interface 1 unit of two door access controller All Rights Reserved By Shenzhen Sintronic Technology Company Limited https://sintronictech.com android system 9
